Capacitor Stacks, Voltage Multiplier, Ceramic Cascade 8KV ~ 50KV

  • Multiple designs up to 12 stages
  • Ceramic cascade with a voltage of up to 100,000V
  • Capacitance ratings of the individual discs from 100pF to 2400pF
  • Application: Electrostatic powder coating

◆ SPECIFICATIONS

capacitor stacks spec

◆ DIMENSION

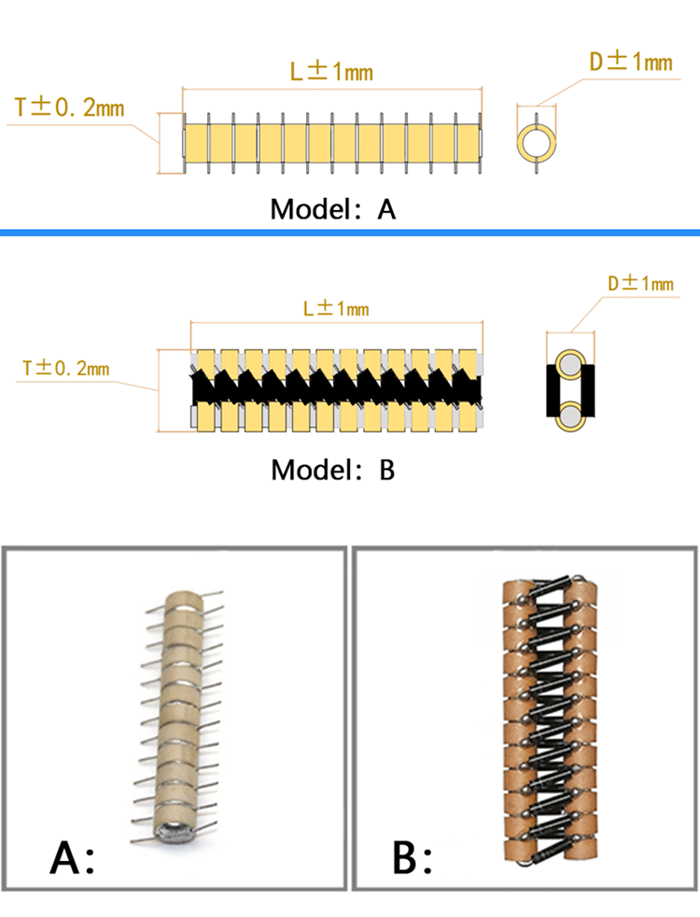

capacitor stacks dimension

◆ COMMON MODELS

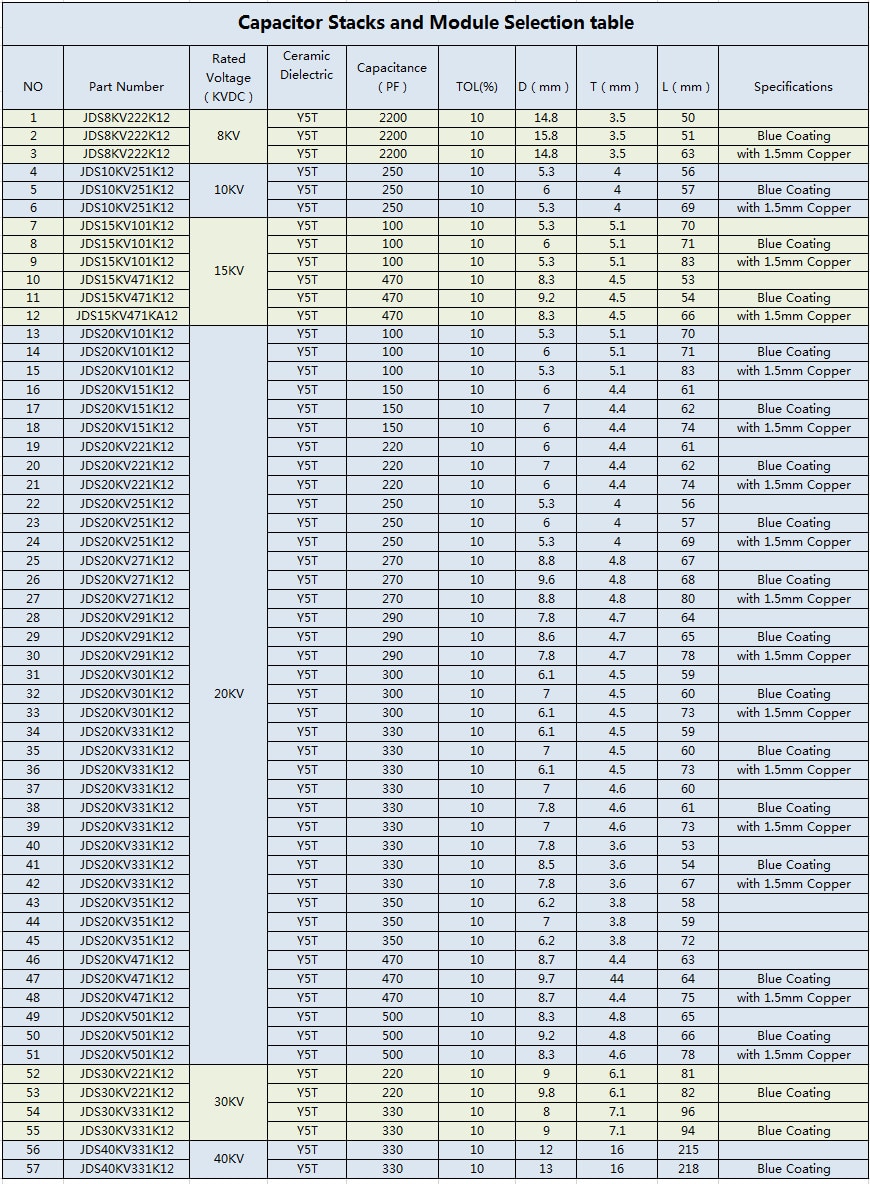

Capacitor Stacks Model list

◆ VARIETY TYPE

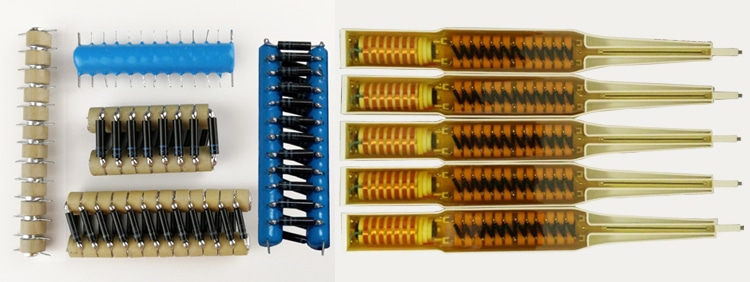

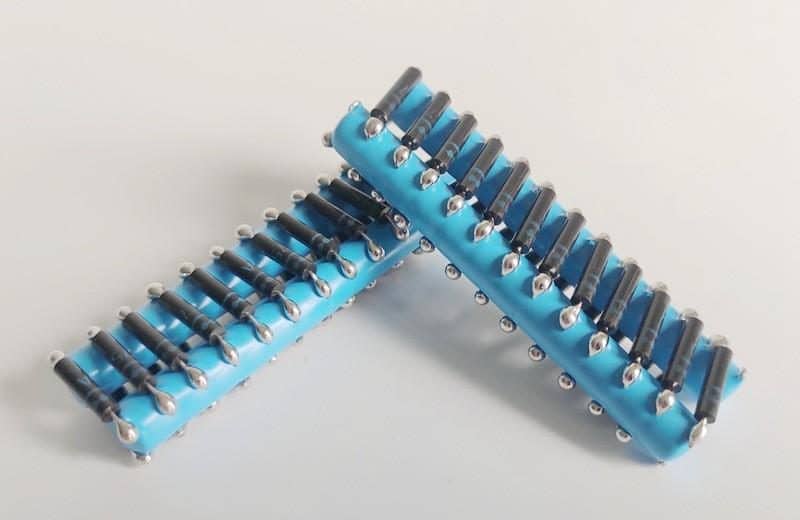

voltage multiplier, capacitor stacks

All the capacitance, voltage, number of stacks, diodes specs can be customized as request

◆ APPLICATIONS

The stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.

22 Go to

Powder Coatings: What You Need to Know



Major applications:
Electrostatic spraying equipment.
Powder coating machine
• Low power voltage multipliers
• High voltage DC generators.

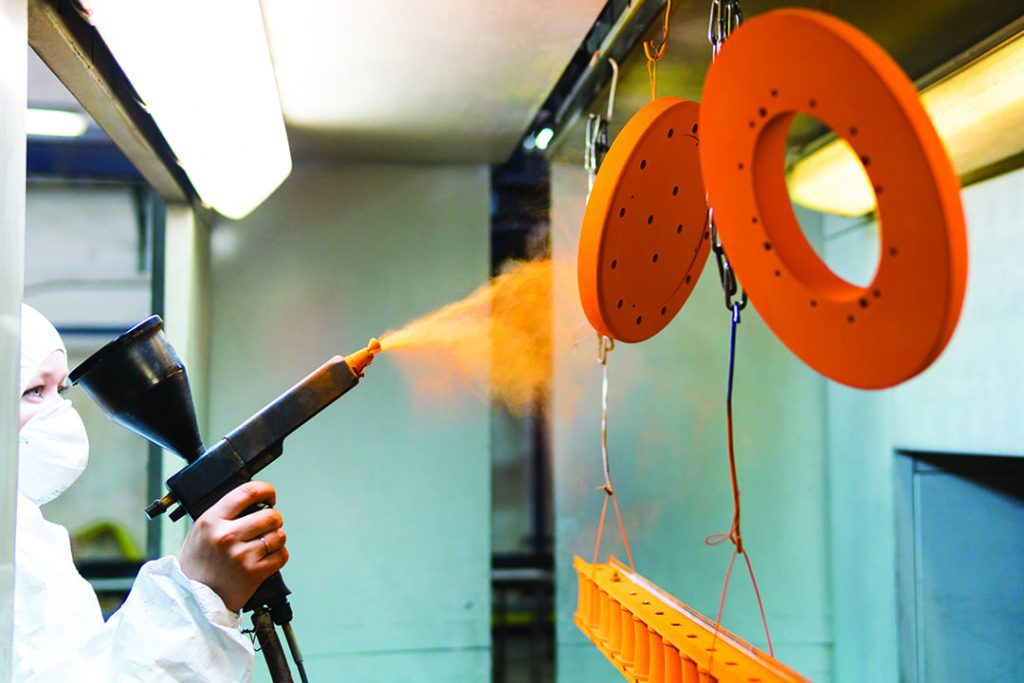

Powder Coating

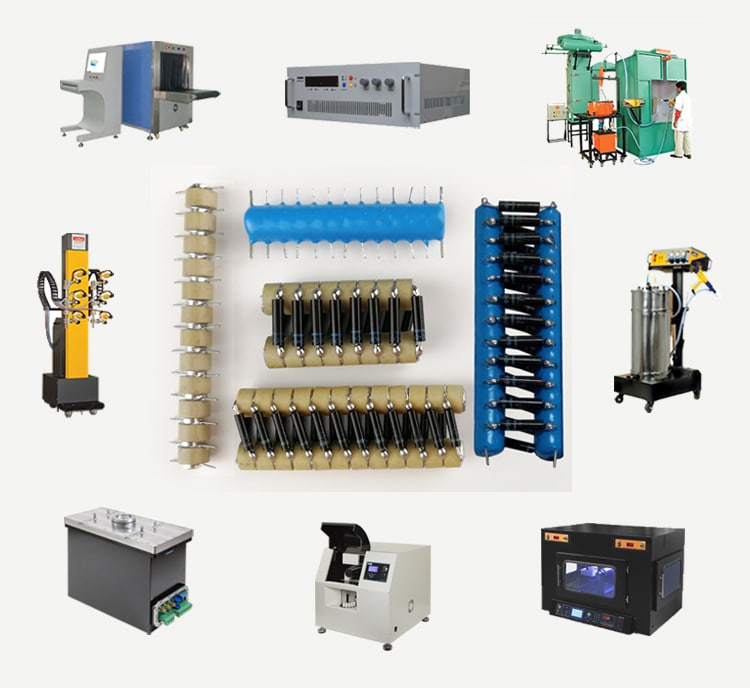

capacitor stacks application2capacitor stacks application

Need some diodes to work with? go to diodes>>>
